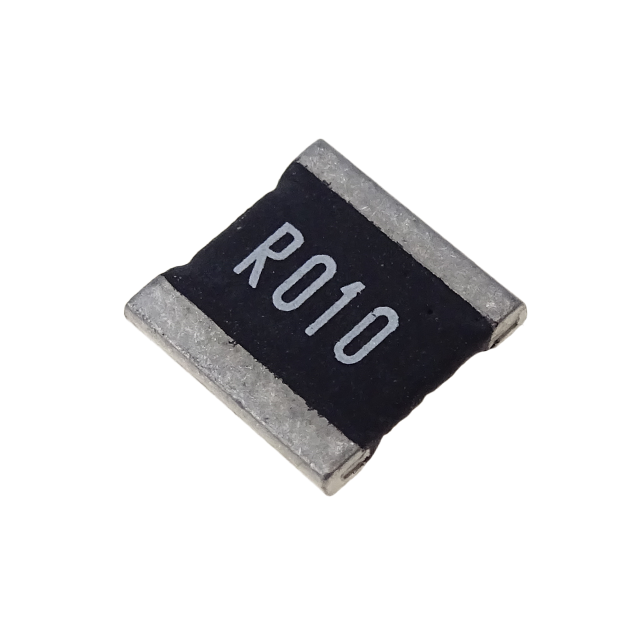

HoCG4527 Automotive Grade Molded Alloy Resistor

I. Core Product Positioning

The HoCG4527 is an iteratively upgraded 7 W ultra-high-power automotive-grade molded alloy resistor from Shenzhen Milliohm Electronics. Built on a 4527 large-size package architecture and combined with China's leading high-thermal-conductivity epoxy resin molding process, it features five core performance characteristics: high power handling, ultra-low temperature drift, high overload withstand capability, low inductance at high frequency, and automotive-grade high reliability. As a high-end high-current precision current sensing resistor, the product fully resolves industry pain points associated with conventional SMD resistors—such as insufficient power, high-temperature drift, high-frequency interference, susceptibility to burnout, and poor consistency—making it a core domestic replacement device for demanding scenarios in new energy, automotive electronics, industrial control, military equipment, and battery testing.

The entire series is certified to AEC-Q200 automotive-grade standards and RoHS/REACH halogen-free environmental certifications, and is mass-produced under authoritative quality systems such as IATF 16949 and ISO 9001. It is suited to complex working conditions across an ultra-wide temperature range of −55°C to +170°C, combining multiple functions including high-precision sensing, high-power current limiting, and circuit safety protection. It is a preferred solution for circuit stability upgrades in mid-to-high-end equipment.

II. Seven Core Competitive Advantages

1. Industry-First High-Thermal-Conductivity Molding Process, Outstanding Heat Dissipation
As one of China's first alloy resistors to adopt a high-thermal-conductivity epoxy resin molding process, the product delivers significantly improved heat dissipation efficiency, ideally suiting continuous 7 W high-power load conditions. The molded structure fits tightly against the resistor body, rapidly dissipating operating temperature rise and eliminating resistance drift, housing carbonization, and device burnout caused by heat accumulation, delivering exceptional stability under long-term full-load operation.

2. Ultra-High Power and High Current-Carrying Capability, Outstanding Overload Capability
The 4527 large package offers a dedicated 7 W ultra-high power rating, with resistance covering the ultra-low range of 1 mΩ to 100 mΩ. Standard specifications achieve a maximum rated current of up to 83.66 A, with short-time peak overload current reaching as high as 187.08 A. It supports 5× rated power for 5-second short-time surges, with surge withstand and overload capability far exceeding products of the same size in the industry, suiting high-current charge/discharge and high-frequency start-stop conditions.

3. Ultra-Low Temperature Drift, Accurate and Stable Sensing
Across the entire series, the temperature coefficient is as low as ±25 to ±75 ppm/°C, with minimal resistance fluctuation across the full temperature range. This thoroughly resolves sampling data distortion and parameter shift caused by high-low temperature switching and long-term operation. These core characteristics of high precision and low drift meet the stringent data accuracy requirements of industrial precision control, automotive battery sensing, and military measurement and control.

4. Ultra-Low Parasitic Inductance, Suited to High-Frequency AC Applications
With parasitic inductance of less than 3 nH and excellent high-frequency characteristics, the product effectively suppresses waveform distortion, signal interference, and phase shift in high-frequency circuits. It is ideally suited to servo drives, variable-frequency control systems, high-frequency power modules, and other high-frequency equipment, ensuring continuous, stable operation of high-speed circuits.

5. Five-Layer Composite Structure, Maximum Reliability
Adopting a five-layer precision composite structure of tin layer, nickel layer, copper layer, alloy body, and molding layer, combined with a mature molding process, it delivers excellent soldering performance with robust joints resistant to detachment and virtual soldering. The structure is moisture-proof, dust-proof, corrosion-resistant, and mechanically shock-resistant, withstanding complex working conditions such as vibration, rapid temperature swings, and prolonged high-temperature/high-humidity exposure.

6. Automotive-Grade Rigorous Quality, Long-Term Stability and Durability
Certified to the full AEC-Q200 automotive-grade reliability test suite, the device has undergone rigorous testing including 1,000 temperature cycles, 1,000 hours of high-temperature load, 1,000 hours of damp-heat exposure, and long-term high/low-temperature storage. It shows no damage and controllable tolerance deviation, fully meeting the high-reliability standards of automotive, military, and high-end industrial equipment.

7. Eco-Friendly, Precision Mass Production, Suited to Automated Manufacturing
Utilizing eco-friendly laser marking, the markings are clear, wear-resistant, and resistant to detachment, with a refined, high-end appearance and no hazardous substances, complying with RoHS, halogen-free, and REACH global environmental compliance standards. The product offers extremely high batch consistency, and standardized taping is compatible with fully automated placement, reflow soldering, and wave soldering processes, significantly reducing mass-production defect rates and costs.

III. Full-Series Core Electrical Specifications

The HoCG4527 series offers a well-graded parameter matrix, precisely covering the full spectrum of high-power, high-precision, low-drift, and low-inductance requirements. Key specifications are as follows:

• Package: 4527 large-size high-power package

• Power Rating: 7 W ultra-high power rating, with industry-leading power density

• Resistance Range: 0 Ω to 100 mΩ, fully covering the core commonly used ultra-low resistance range of 1 mΩ to 100 mΩ

• Temperature Coefficient (TCR): ±25 ppm/°C to ±75 ppm/°C ultra-low temperature drift, dedicated to precision models

• Tolerance: Full gradient of ±0.1%, ±0.2%, ±0.5%, ±1%, and ±5%, suiting all scenarios from precision to general-purpose

• Operating Temperature Range: −55°C to +170°C ultra-wide range, suiting extreme high and low temperature conditions

• Parasitic Inductance: < 3 nH, low-inductance design for high-frequency applications, suiting high-frequency AC sensing

• Rated Current: Maximum continuous rated current of 83.66 A

• Overload Current: Maximum short-time overload current of 187.08 A, with excellent surge withstand performance

IV. Product Structure and Process Advantages

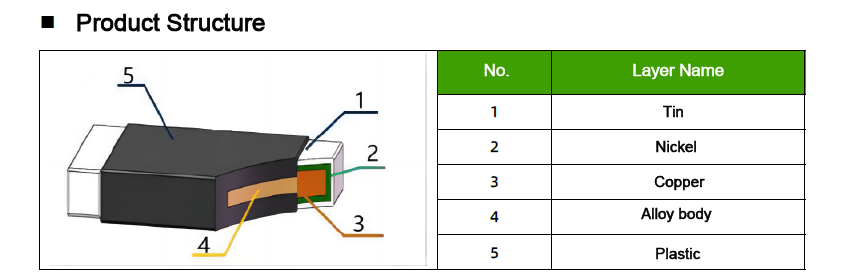

The HoCG4527 adopts a five-layer integrated precision composite structure, enhancing product performance layer by layer, with comprehensive upgrades from core conduction to outer protection: the core alloy body uses high-end precision alloy materials, ensuring the core characteristics of low resistance, low drift, and high conductivity; copper, nickel, and tin multilayer metal platings greatly enhance soldering adhesion and reduce contact resistance, preventing poor contact during long-term use; and the outer high-thermal-conductivity epoxy resin molding layer combines three functions—efficient heat dissipation, insulation protection, and mechanical damage resistance.

Compared with conventional power resistors, the product uses a mature molding process instead of simple packaging, offering greater structural stability and eliminating cracking, air leakage, and moisture-induced oxidation. Eco-friendly laser marking replaces conventional silk-screen printing, being wear-resistant, corrosion-resistant, and permanently non-detaching, meeting the appearance traceability and long-term use requirements of high-end equipment. Meanwhile, standardized product dimensions and compatibility with universal pads make it compatible with various PCB designs—replacement and upgrades require no board modification, offering exceptional adaptability.

V. Full-Dimension Reliability Test Standards

The product strictly follows IEC and JIS international electrical standards and has completed a full set of rigorous reliability verifications, with stable performance in thousand-level long-term testing and extremely low defect rates. Specific test standards are as follows:

• Load Life Test: 1,000-hour cyclic load at 70°C rated power; tolerance deviation ≤ ±1%, with no damage or failure

• Temperature Cycling Test: 1,000 thermal cycles from −55°C to +155°C, 30 minutes each at high and low temperature per cycle; tolerance deviation ≤ ±0.5%, with no structural cracking

• High-Temperature/High-Humidity Test: 1,000-hour loaded test at 85°C and 85% RH; no performance degradation, no corrosion

• Short-Time Overload Test: 5× rated power for 5 seconds; no burnout, no drift, no visible damage

• Soldering Compatibility Test: 260°C high-temperature soldering for 10 seconds; excellent soldering heat resistance, tolerance deviation ≤ ±0.5%

• Insulation Withstand Voltage Test: 100 V/s gradient withstand voltage test between electrode and substrate; 60-second hold with no breakdown, no flashover

• Environmental Storage Test: 1,000-hour no-load storage at −55°C low temperature and 170°C high temperature; stable performance with no anomalies

VI. Standardized Selection Guide

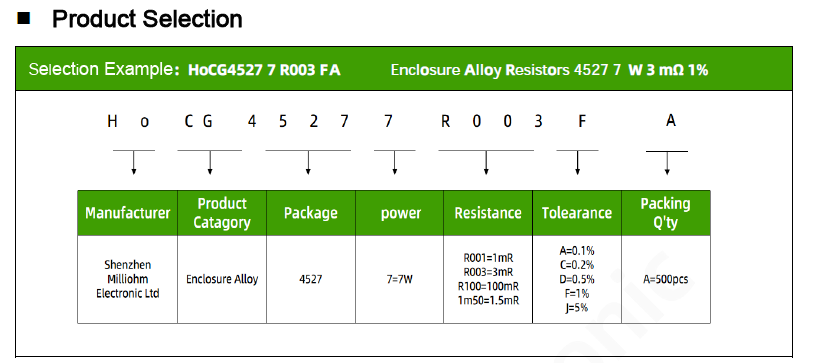

Selection example: HoCG4527 7 R003 F A K, denoting a 4527 automotive-grade molded alloy resistor, 7 W power rating, 3 mΩ resistance, 1% tolerance, standard small electrode, and alloy material. The product supports personalized customization of resistance, tolerance, electrode structure, and material. Selection is simple and efficient, enabling rapid matching to various circuit designs and mass-production requirements. The product uses standardized taping of 500 pcs/reel, compatible with automated equipment for mass production.

VII. Industry Applications, Brand Strength, and Cooperation Advantages

I. Adaptation Across Full-Spectrum High-End Scenarios

Leveraging its comprehensive performance—7 W high power, low temperature drift, high reliability, and low inductance at high frequency—the HoCG4527 fully covers high-end sectors including automotive electronics, industrial control, new energy power, aerospace and defense, and battery testing. It is a core component for high-current sensing, power current limiting, and circuit safety protection:

• Automotive Electronics: On-board BMS battery management systems, automotive power control units, on-board variable-frequency drive modules, and body control modules. Backed by AEC-Q200 automotive-grade qualification, it withstands on-board vibration, high/low temperatures, and complex electromagnetic environments, precisely sensing battery charge/discharge current to ensure safe and stable on-board circuit operation.

• Industrial Automation: Servo drive systems, variable-frequency controllers, industrial precision instruments, and automation control systems. Ultra-low temperature drift eliminates parameter shift during long-term equipment operation, while low inductance at high frequency suits industrial high-frequency drive conditions, improving equipment control precision.

• New Energy Power: High-power power modules, charging stations, energy storage equipment, and photovoltaic/wind power control systems. The 7 W ultra-high power suits high-current charge/discharge and continuous load conditions in new energy applications, with overload resistance and temperature rise tolerance adapting to high-frequency start-stop operating modes.

• Aerospace and Defense: Power supplies, aerospace precision controllers, and high-end measurement and control equipment. Ultra-wide temperature range, high stability, and high reliability meet stringent military quality and environmental adaptation standards.
