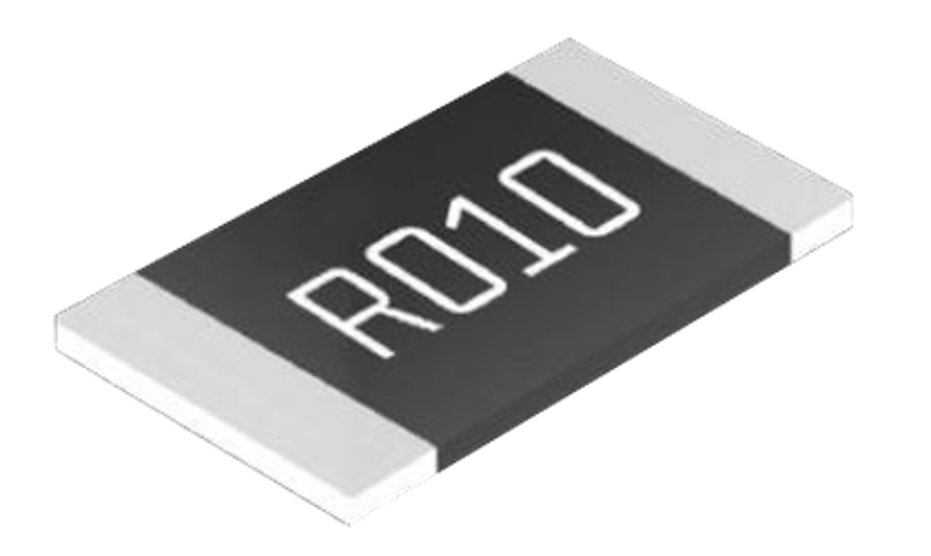

HoYLR2512 — Newly Launched High-Stability Anti-Sulfurated Encapsulated Alloy Resistor

author: Milliohm Electronics

2026-07-31

I. Product Positioning, Key Highlights and Core Value Proposition

① Product Positioning

The HoYLR2512 is a newly launched high-stability anti-sulfuration molded alloy resistor from Shenzhen Milliohm Electronics. It is specifically designed for high-end consumer-grade and light-industrial applications, including consumer electronics, Li-ion battery peripherals, smart home devices, and electric power tools.

Leveraging mature alloy resistive element technology and an integrally molded encapsulation structure, this product effectively resolves common industry failure modes associated with conventional chip resistors, including susceptibility to sulfuration-induced degradation, high TCR (Temperature Coefficient of Resistance), inadequate long-term stability, poor overload capability, and reduced operational lifespan. It simultaneously offers a comprehensive set of performance advantages, including high power rating, ultra-low TCR, high reliability, halogen-free compliance, and superior corrosion resistance.

Manufactured in strict compliance with IEC and JIS international standards, the HoYLR2512 is produced under IATF 16949 and ISO 9001 certified quality management systems and fully meets RoHS and REACH halogen-free environmental regulations. With an ultra-wide operating temperature range of -55°C to +170°C, it serves as a cost-effective preferred solution for current sensing, voltage dividing, and current limiting functions in power adapters, battery chargers, Li-ion battery protection circuits, home appliance control boards, and power tools. This device offers an ideal direct replacement for imported counterparts, enabling seamless domestic substitution without compromising performance.

② Eight Key Product Advantages

②-1. Proprietary Anti-Sulfuration Technology for Long-Term Stability and Reliability

Featuring a proprietary anti-sulfuration structural design and protective materials, this resistor effectively resists moisture and sulfur-bearing gas corrosion, preventing resistance value drift and open-circuit failures. It fundamentally eliminates the sulfuration-induced degradation commonly observed in conventional resistors under harsh atmospheric conditions and prolonged continuous operation, significantly extending equipment service life.

②-2. Premium Metallized Element Technology for a Solid Performance Foundation

Utilizing a high-precision alloy core element combined with a multilayer metallized electrode structure, this resistor delivers excellent electrical conductivity and uniform internal resistance. This ensures consistent resistance values from the source, avoiding equipment sensing errors and operational anomalies caused by batch-to-batch deviations, while offering exceptional mass-production compatibility.

②-3. Exceptional Long-Term Stability with Resistance to Extreme Temperatures and Aging

Having undergone rigorous 1,000-hour stress tests including high-temperature exposure, low-temperature operation, damp heat, and load life testing, this resistor exhibits minimal resistance drift under long-term continuous operation and thermal cycling conditions. It shows no signs of aging degradation or performance decay, making it suitable for equipment requiring years of uninterrupted stable operation.

②-4. Halogen-Free and Lead-Free Environmental Compliance for Global Export

Manufactured entirely with environmentally friendly raw materials and production processes, this resistor is fully compliant with RoHS and REACH halogen-free and lead-free standards. It releases no hazardous substances, meeting the environmental compliance requirements of various electronic products worldwide and supporting global export trade.

②-5. Stabilized Material Formulation for Controllable Resistance Tolerance

Developed with a customized stabilized alloy material formulation that features low mechanical stress and stable physical characteristics, this resistor effectively mitigates resistance fluctuations caused by temperature variations and mechanical stress. It provides reliable performance assurance for precision current sensing and voltage division applications.

②-6. High Power Rating – Compact Package with High Load Capacity

Offered in the standard 2512 package size with dual power ratings of 2W and 3W, this resistor is also available in a 2512(S) large-electrode enhanced version, which optimizes power handling capability for ultra-low resistance values. With a power density significantly exceeding that of conventional chip resistors of the same footprint, it is well-suited for high-current short-term surge and continuous load conditions.

②-7. Ultra-Low TCR for High-Precision Current Sensing

The temperature coefficient of resistance (TCR) is precisely graded to match the full resistance range. In the 2mΩ to 4mΩ range, the minimum TCR can reach as low as ±50ppm/°C, with targeted TCR optimization for the low-resistance segment. This ensures accurate and stable sensing data across the entire operating temperature range, eliminating parameter drift-related failures.

②-8. High Reliability for Demanding Application Environments

Having passed comprehensive reliability tests including short-time overload, resistance to soldering heat, temperature cycling, damp heat (steady state), and substrate bending, this resistor demonstrates excellent capability against impact, vibration, and high-temperature/humidity conditions. It is well-suited for diverse use scenarios including household appliances, outdoor equipment, and portable handheld devices.

③ Key Applications

The HoYLR2512 is precisely targeted at a diverse array of consumer and light-industrial applications, spanning mainstream consumer electronics and new energy ecosystem segments:

Consumer Electronics: Digital devices, quick-charge chargers, smart home systems, and general consumer electronics
Power Management: Current sensing and voltage divider networks, power adapters, and AC-DC converters
Industrial & Tools: Electric power tools and cleaning appliances
Battery Management: Li-ion battery protection circuit modules (PCM) and battery management systems (BMS)
Appliances: Major household appliances and smart cleaning equipment

This resistor delivers reliable performance across the core circuit functions of current sensing, current limiting, and voltage division in medium- to low-power applications.

II.Electrical Specifications, Package Construction & Materials and Reliability Test System

① Complete Electrical Specifications

The HoYLR2512 series is available in two package variants: the standard 2512 version and the 2512(S) large-electrode enhanced version. The parameter specifications are clearly graded and comprehensively defined to precisely match diverse resistance values and power rating requirements across various application conditions:

Package Variants: Standard 2512, 2512(S) large-electrode enhanced
Power Rating: Standard version – 2W / 3W optional; Enhanced version – 3W
Resistance Range: Full coverage from 0mΩ to 500mΩ, with detailed subdivisions for ultra-low resistance and standard low-resistance ranges
TCR (Temperature Coefficient of Resistance):
- 0mΩ ≤ R < 1mΩ: ±350ppm/°C
- 1mΩ ≤ R < 2mΩ: ±100ppm/°C
- 2mΩ ≤ R ≤ 500mΩ: ±50ppm/°C (minimum)
Operating Temperature Range: -55°C to +170°C ultra-wide range, suitable for extreme high- and low-temperature environments
Resistance Tolerance: ±1%, ±2%, and ±5% available, accommodating both precision current sensing and general-purpose current limiting applications
Insulation Resistance: >100MΩ between electrode and substrate, ensuring excellent insulation performance and eliminating leakage current risks
Overload Capability: Supports 5x rated power for 5 seconds short-time overload, providing robust surge withstand capability

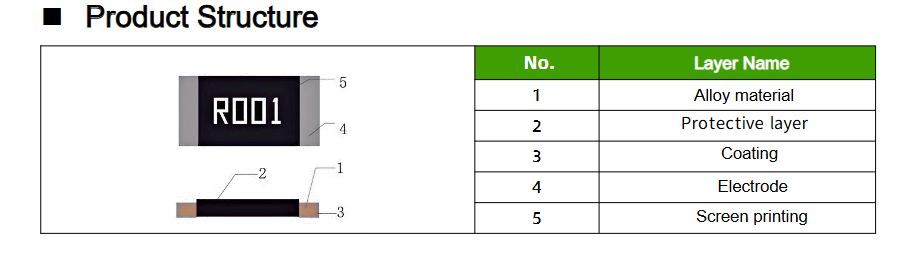

② Five-Layer Precision Construction

The HoYLR2512 features an integrally molded five-layer precision construction consisting of: alloy resistive element layer, protective layer, plating layer, electrode termination, and marking legend. Each layer contributes to the overall performance, delivering a structurally robust and technologically mature design:

Alloy Resistive Element Layer – Ensures low resistance values, low TCR, and high electrical conductivity as the core functional layer.
Protective Layer – Provides dedicated sulfuration resistance, moisture resistance, and corrosion protection.
Multilayer Plating – Enhances solderability and reduces contact resistance.
Electrode Termination – Optimizes current conduction paths and minimizes I²R power loss.
Marking Legend – Features clear, abrasion-resistant laser marking for easy identification, part number selection, and production traceability.

③ Rigorous Reliability Test Standards

The product has undergone comprehensive reliability verification in full compliance with IEC 60115, IEC 60068, and JIS-C 5201-1 international standards. All test limits are set to stringent levels to ensure zero-risk long-term operation:

Short-Time Overload: 5x rated power for 5 seconds; resistance change ≤ ±(1% + 0.05mΩ); no burn-out, no damage
High/Low Temperature Storage (Life): 1,000-hour storage at +170°C (high temperature) and -55°C (low temperature); resistance drift remains within control with no performance degradation
Temperature Cycling: 1,000 cycles between -55°C and +155°C; resistance change ≤ ±(0.5% + 0.05mΩ); no structural cracks
Load Life: 1,000-hour cyclic load test at 70°C under rated power; resistance remains stable with no drift
Damp Heat Load Life: 1,000-hour load test at 85°C / 85% RH; suitable for humid and demanding operating environments
Solderability & Resistance to Soldering Heat: 270°C resistance to soldering heat and 245°C solderability test; solder coverage >95%; compatible with automated reflow soldering and wave soldering processes
Mechanical & Environmental Durability: Substrate bending test and isopropyl alcohol solvent resistance test; no mechanical damage, no marking deterioration; suitable for mass production and long-term field use

④ Standard Ordering Information & Packaging

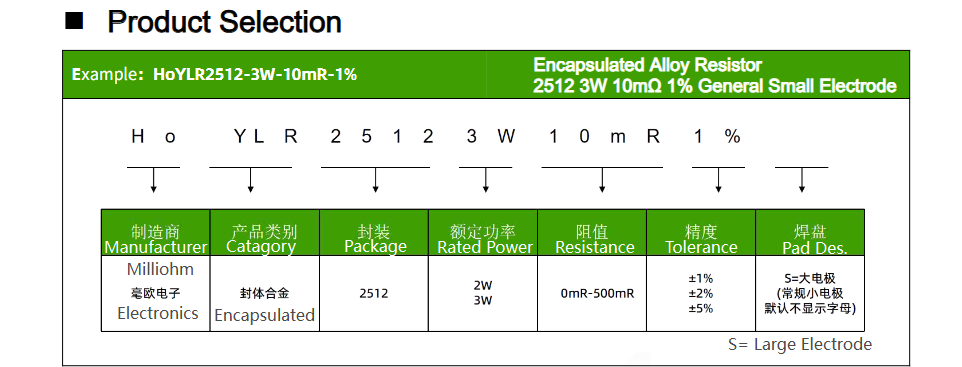

Standard Ordering Code Example:
HoYLR2512-3W-10mR-1% — denotes the standard 2512 package, 3W power rating, 10mΩ resistance value, and ±1% tolerance with standard small-electrode termination. The 2512(S) large-electrode enhanced version is distinctly identified with a separate ordering code suffix.

Packaging:
Supplied in 4,000pcs per reel standard tape-and-reel packaging, fully compatible with automated pick-and-place assembly lines. The peel strength is consistent and stable, ensuring reliable performance in high-speed SMT production processes.

III.Application Scenarios, Corporate Strength，Partnership Advantages

① Application-Specific Advantages for Key Market Segments

Leveraging its core strengths — anti-sulfuration, high stability, ultra-low TCR, and excellent cost-effectiveness — the HoYLR2512 precisely addresses the critical requirements of diverse market segments including consumer electronics, new energy ancillary systems, and smart home applications, effectively resolving common industry pain points:

Quick-Charge Chargers / Power Adapters: The ultra-low TCR ensures precise current and voltage sensing for charging control, while the anti-sulfuration capability prevents long-term aging and open-circuit failures under frequent start-stop operation. This enhances charging stability and safety in fast-charge applications.
Lithium-Ion Battery Protection Boards (PCM/BMS): With 2W/3W high power handling capability, the resistor accommodates high-current charge/discharge conditions. Its precise resistance tolerance enables accurate overcurrent and overtemperature protection, eliminating the risk of overcharge and over-discharge.
Electric Power Tools: The resistor's vibration resistance, mechanical shock tolerance, and wide-temperature performance make it ideal for handheld tools subjected to frequent start-stop cycles and demanding outdoor conditions, ensuring stable operation with no drift over extended service life.
Smart Home / Major & Small Home Appliances: Halogen-free and RoHS/REACH compliant, this resistor delivers long-term stable performance for always-on standby and continuous operation modes. It reduces field failure rates and enhances product reliability and brand reputation.
Digital Device Control Modules: With precision voltage division and current sensing functions, the resistor ensures accurate circuit operation in digital devices. Its compact footprint and strong design adaptability save valuable PCB layout space.

② Manufacturing Excellence & Corporate Strength

The HoYLR2512 is independently developed and manufactured by Shenzhen Milliohm Electronics Co., Ltd. Founded in 2009, the company is a nationally recognized High-Tech Enterprise and a "Specialized and Sophisticated" (Zhuan Jing Te Xin) enterprise, with over a decade of deep expertise in precision alloy resistors. The company operates a comprehensive R&D, production, testing, and after-sales support infrastructure.

Headquartered in Shenzhen, Milliohm has established four manufacturing facilities across Anhui, Foshan, Zhongshan, and Danyang, supported by eight regional sales offices. The company occupies 30,000m² of standardized production floor space and employs a team of over 400 professionals, including more than 50 senior R&D engineers. Dedicated one-on-one technical consultation and custom solution design services are available to support customer-specific application requirements.

Milliohm maintains a full suite of internationally recognized quality and management system certifications, including ISO 9001 (Quality Management), IATF 16949 (Automotive Industry), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health and Safety). All products are fully compliant with global environmental regulations, including RoHS and REACH.

With a robust production capacity of 400 to 450 million chip resistors per month, the company ensures standardized mass production with end-to-end quality control throughout the entire manufacturing process. This delivers exceptional batch-to-batch consistency and extremely low defect rates, fully supporting customers' high-volume orders with reliable on-time delivery.

③ Core Partnership Advantages

Cost-Effective Domestic Alternative: Performance comparable to imported counterparts, with anti-sulfuration and stability characteristics better suited for consumer electronics operating conditions in the domestic market. Significantly reduces procurement costs while eliminating import premiums and lengthy lead-time risks.
Aging Resistance & High Reliability: Proprietary anti-sulfuration technology combined with long-term environmental durability testing effectively resolves the common failure modes of consumer electronics — sulfuration-induced degradation under prolonged continuous operation and humid environments — substantially reducing field failure rates.
Flexible Mass Production Compatibility: Available in both standard and large-electrode (S) versions, with comprehensive resistance and tolerance grading options. Standardized footprint requires no PCB redesign, ensuring seamless compatibility with a wide range of SMT production lines.
End-to-End Application Support: Dedicated FAE (Field Application Engineering) team provides full-cycle technical support, including part selection guidance, sample evaluation, production integration, and post-sales technical consultation, ensuring rapid response to customer requirements.

④ Handling, Application & Storage Instructions

Handling Precautions: Proper surface protection should be maintained during handling to prevent physical damage such as scratching, chipping, or mechanical stress-induced cracking. For long-term continuous operation, it is recommended that the applied power not exceed the rated power. In applications with inadequate heat dissipation, derating per the power derating curve is required.
Storage Conditions: Standard storage environment: 5°C to 35°C, relative humidity <65% RH, in a clean, dry, and corrosive-gas-free atmosphere. Under these conditions, the product can be stored for up to 12 months in its unopened original packaging. For products exceeding the recommended storage period, solderability and resistance stability should be verified prior to use.
