HoCG2512 Series Automotive Grade Encapsulated Alloy Resistor
- Airbags / Car headlights
- Transmission/Power Supply/Motor
- Windscreen wipers/Power window
- Thermal Management / Fuel Pump / Water Pump
- Eco-friendly laser-etched markings for a premium look
- Consistent performance, high precision, high reliability, high stability
- Alloy chip, encapsulated for superior solderability, reliability, and overload ability

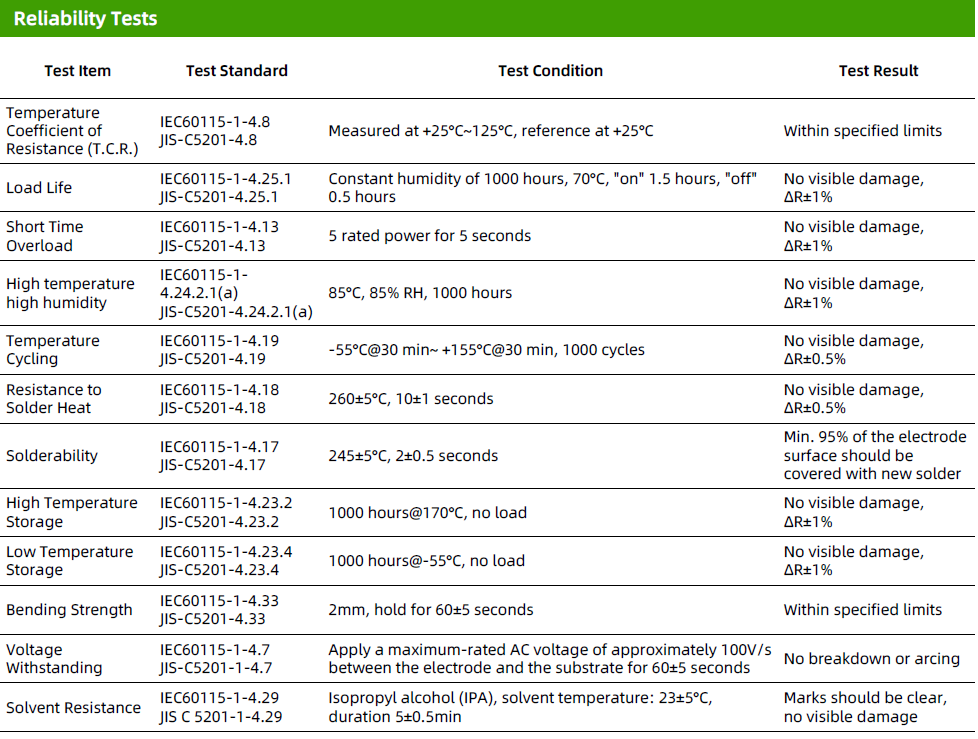

- Compliant with ROHS and halogen-free requirements, automotive AEC-Q200 testing
- The first manufacturer of alloy resistors using high thermal conductivity epoxy resin in China
- Low resistance temperature coefficient, ultra-low parasitic inductance, can be used for high-frequency AC current detection
|
Package Power Resistance |
TCR Operating temperature Tolerance Inductance |
|||||
|

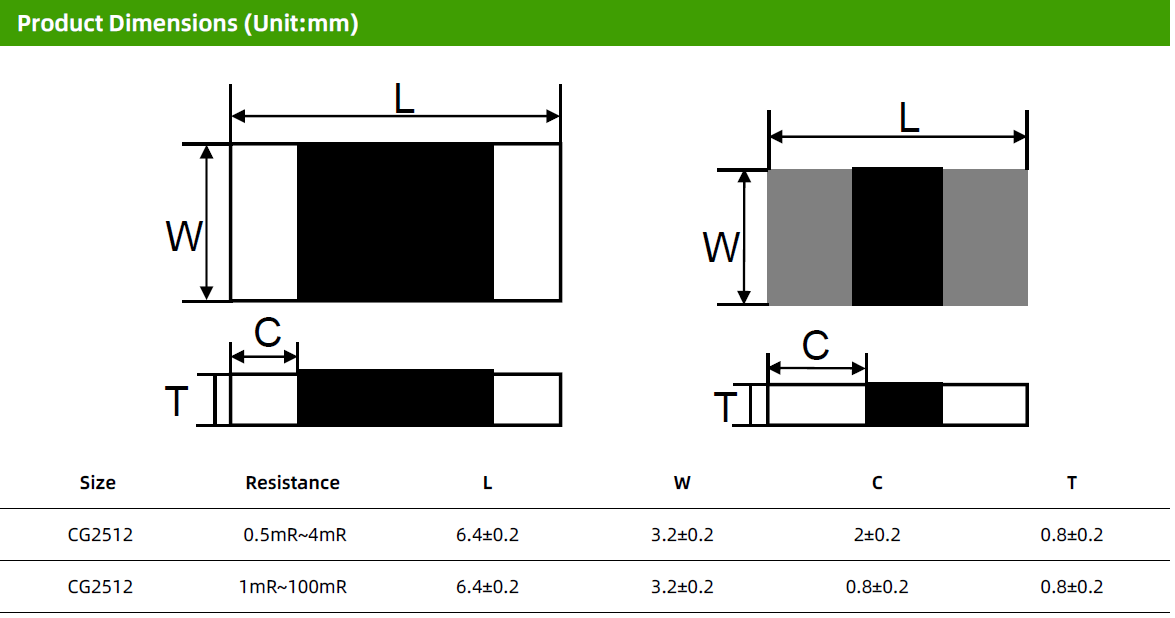

2512 |
4W |
0R |
/ |

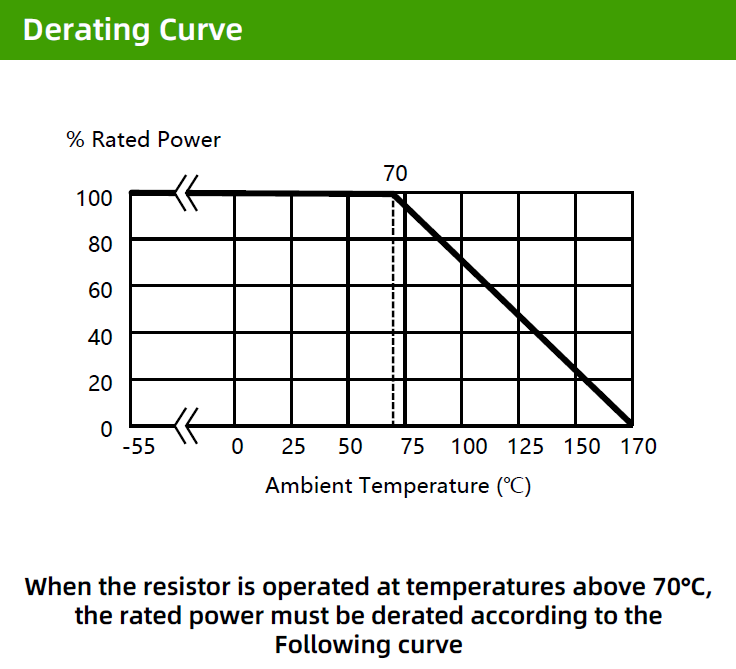

-55℃ ~ +170℃ |
＜0.1mR |
＜3nH |
|
R≤0.5mR |
±150 |
±0.5%、 ±1%、 ±5% |
||||
|
3.5W |
0.5mR＜R≤1mR |
|||||
|
3W |
1mR＜R ≤5mR |
±50 |
±0.1%、 ±0.2%、 ± 0.5%、 ±1%、 ±5% |
|||
|
5mR＜R ≤10mR |
±25 |
|||||
|
2W |
10mR＜R ≤100mR |
|||||
|
|
1 |
Tin Layer |
|
2 |
Nickel Layer |
|
|
3 |
Copper Layer |
|
|
4 |
Alloy resistance element |
|
|
5 |
Epoxy coating Layer |
- For Example：HoCG2512-3-R001-F-4-S
|
Ho |
CG |
2512 |
3 |
R001 |
F |
4 |
S |
|
Manufacturer |
Series |
Package |
Rated Power |
Resistance |
Tolerance |
SPQ |
Type |
|
Milliohm |
Automotive grade Encapsulated alloy |
2512 |
A=0.5W 1=1W 2=2W 3=3W B=3.5W 4=4W 5=5W |
R001 = 1mΩ R010 = 10mΩ R100 = 100mΩ 0m50=0.5mΩ |
A=±0.1% C=±0.2% D=±0.5% F=±1% G=±2.0% J=±5.0% |
4=4000pcs |

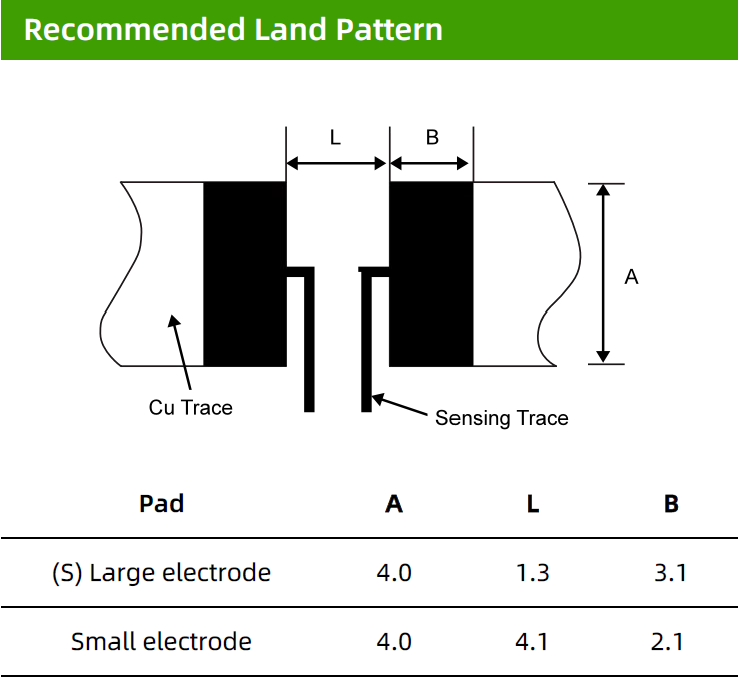

S=Large electrode Normal small electrode =Letters are not displayed |
