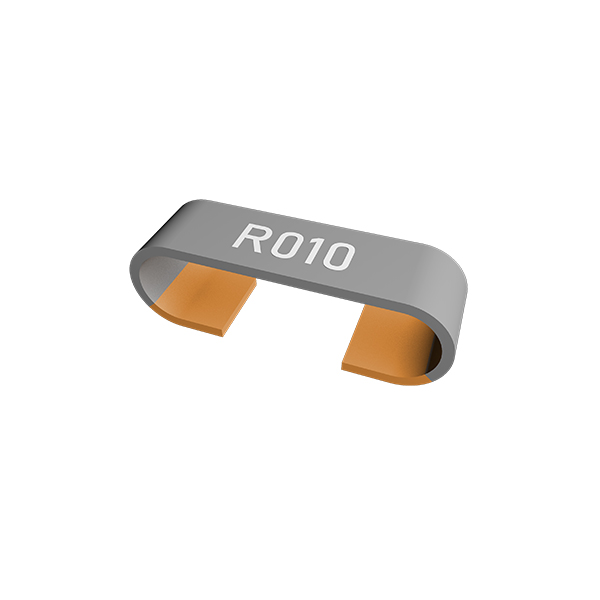

Elevating Current Sensing Performance: The RS3812(3824) Series Bare Alloy Resistors

In industrial instruments, servo drives, and power modules, conventional resistors often hit a wall—poor precision, high drift, limited power, and parasitic inductance wreak havoc on current sensing accuracy, system stability, and maintenance costs. The problems only get worse under extreme temperatures and heavy loads, making traditional resistors a weak link in high-end equipment.

That's why Milliohm Electronics developed the HoRS3812(3824) C-Series. Built on breakthrough alloy resistor technology, these devices overcome the limits of conventional designs—delivering the precision, stability, and reliability that demanding applications demand. Whether it's industrial systems, power supplies, or servo drives, the HoRS C-Series sets a new standard for current sensing performance.

I. Four Key Advantages – Built to Win

(1) Precision + Low TCR = Accurate Sensing: Pure alloy construction, welded with Milliohm's own electron beam equipment, and tightly controlled processes deliver precision up to ±0.5%. From -55°C to +170°C, TCR stays at just ±25~±50 ppm/°C—far better than industry averages—so temperature changes won't compromise your readings.

(2) High Power + High Current – Ready for Demanding Loads: Choose from 3812 (3W, 24.49A) or 3824 (5W, 70.71A). Both handle high-power, high-current circuits with ease, eliminating the need for additional components and simplifying your design.

(3) Non-Inductive + Superior Welding – Excellent Noise Immunity: Inductance below 3 nH minimizes high-frequency interference—perfect for variable frequency drives and servo systems. High-conductivity copper electrodes with electron beam welding ensure strong joints, low contact resistance, and no cold or loose solder issues, extending product life.

(4) Fully Certified + Quality Assured – A Smart Alternative to Imports: Compliant with RoHS, REACH, and backed by ISO9001 and IATF16949 systems. Every step—from materials to final inspection—is traceable and controlled. A direct, cost-effective replacement for imported equivalents, with customization available to fit your specific needs.

II.Product Specifications and Selection Guide

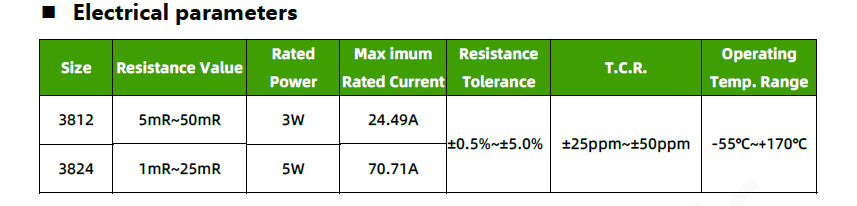

(1) Key Electrical Parameters

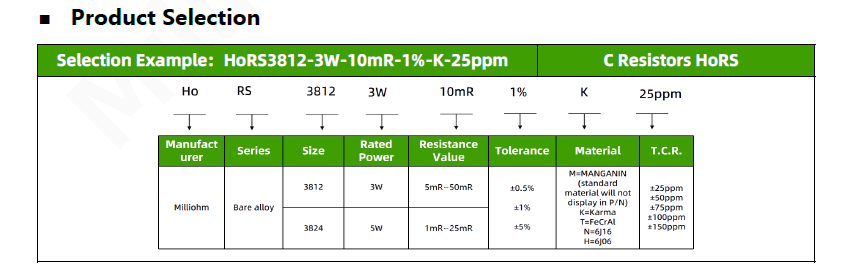

(2) Reference Selection

(3) Typical Application Scenarios

With its exceptional electrical characteristics, the HoRS3812(3824) C-Series resistor is ideally suited for a broad spectrum of high-end equipment across multiple industries, delivering performance precisely aligned with application-specific requirements:

①  Power Supply Modules: High-frequency power supplies, switch-mode power supplies, and EV charging infrastructure—enabling precise current sensing and fine-grained power regulation.

②  Industrial Instrumentation and Equipment: Precision measurement instruments and industrial controllers—ensuring the accuracy and stability of critical data acquisition.

③  Servo Drive Systems: Servo motor drives and AGV robotic drive systems—the non-inductive architecture effectively suppresses high-frequency noise, thereby enhancing overall drive precision.

④  Automation Control Systems: PLCs, variable frequency drives, and automated production line control circuits—robustly engineered to withstand high-power and wide-temperature operating conditions.

⑤  Other Applications: Battery formation and grading equipment, smart electricity meters, and energy storage systems—providing the high reliability and precision that these demanding applications require.

III.Conclusion

Choosing the HoRS3812(3824) C‑Series resistor means selecting a current‑sensing solution that delivers high precision, exceptional reliability, and outstanding cost‑effectiveness. Driven by technological innovation and guided by a customer‑first philosophy, Milliohm Electronics is fully committed to working with our partners to expand the reach of high‑end electronic components and build a future of shared success.
