HoT-D (Plastic Encapsulated - D): High Current Surface Mount Jumper 0R Resistor

author: Milliohm Electronics

2025-12-12

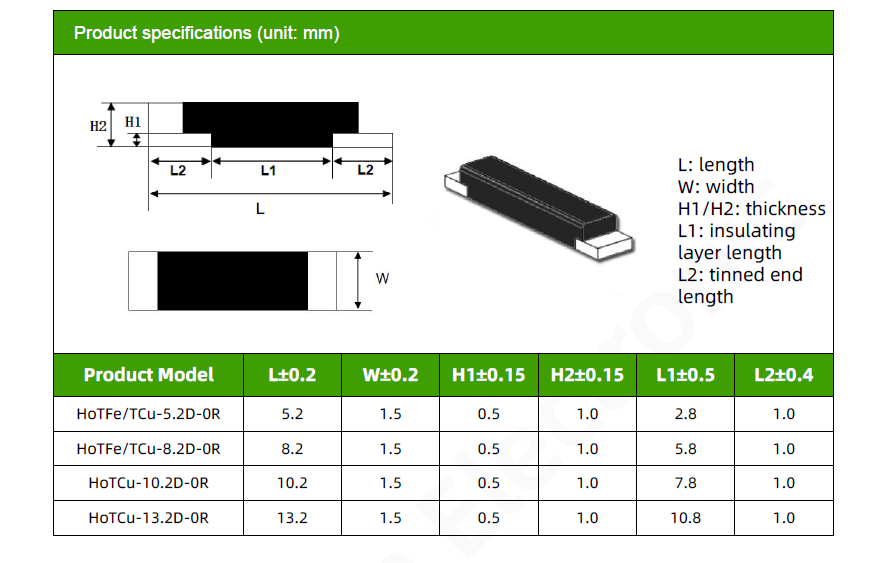

I. Precise Dimensions

It features precise dimensions, with all parameters controlled within strict tolerances. Whether it's overall dimensions like L and W, or detailed dimensions such as H1, H2, L1, and L2, all are precision-machined to ensure accuracy and compatibility during circuit installation. It precisely matches the pads on the circuit board, improving installation efficiency and the reliability of circuit connections.

Digikey Purchase link below:

II. Superior Materials and Craftsmanship

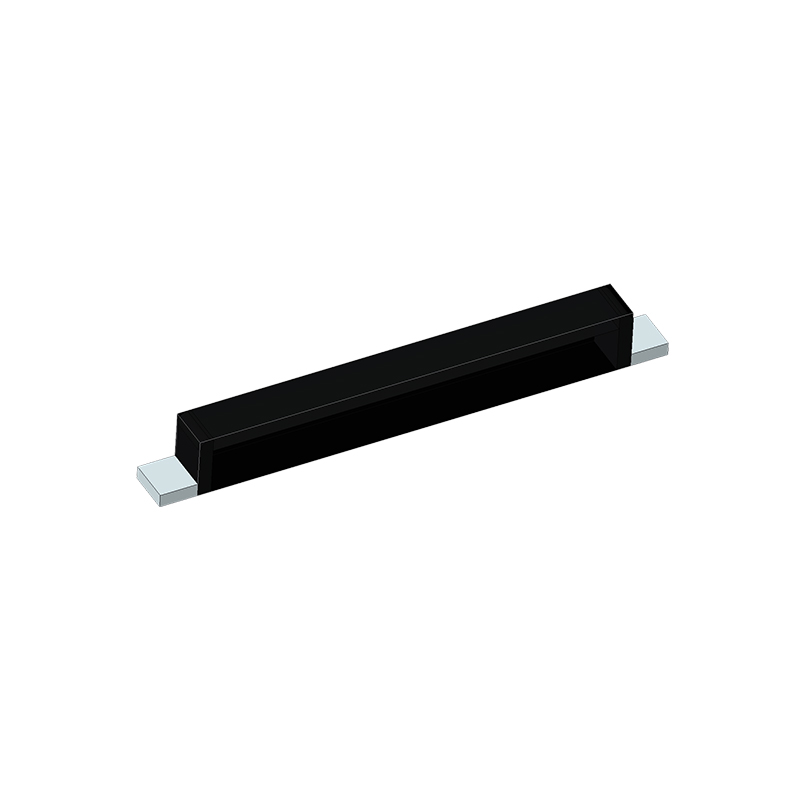

Manufactured using high-quality materials and advanced processes, the plastic-encapsulated design not only provides excellent protection for the resistor, but its insulating plastic layer (shaded "black" area) effectively isolates it from external environmental interference, ensuring the resistor's electrical performance. Simultaneously, advanced manufacturing processes ensure the resistor's consistency and stability, reducing product defect rates.

III. Wide Range of Applications:

HoT-D high-current surface mount jumper resistors are suitable for various electronic device manufacturing scenarios.

① In consumer electronics, such as smartphones, tablets, and laptops, it ensures stable circuit conduction and improves device performance.
② In industrial control, it can be used in the circuits of various automated control equipment to cope with complex industrial environments.
③ In automotive electronics, it can solve the bottleneck problem between heat dissipation and manufacturing processes on circuit boards and meet the stringent reliability and stability requirements of automotive electronics.

IV. Selection Considerations:

In practical applications, the selection of jumper wires directly affects conductivity and reliability. The following factors should be carefully considered.

① Size: The cross-sectional area should match the current carrying capacity, and the length must be within a reasonable range. If the size is too small, the current carrying capacity will be limited.
② Material: Commonly used materials include brass, aluminum sheet, iron sheet, copper, and manganese steel. A comprehensive evaluation should be conducted based on factors such as conductivity, mechanical strength, and cost to ensure good stability under high current and complex environments.
③ Pads: It is generally recommended to design them slightly smaller than the copper strip body size to ensure good soldering quality and solder paste filling. Pads that are too large or too small may lead to solder joint defects or excessive solder flow.
④ Plating: To reduce contact resistance and enhance corrosion resistance, surface treatments such as nickel plating, tin plating, or gold plating can be selected according to requirements. The application environment (e.g., humidity, salt spray) should be considered.

V. Conclusion

HoT-D high-current surface mount jumper 0R resistors (molded - D) are a premium choice for electronic circuit design and manufacturing due to their superior electrical performance, precise dimensions, high-quality materials and manufacturing processes, multiple certifications, and wide range of applications. Haoou Electronics is committed to providing customers with high-quality electronic components, contributing to the development of the electronic equipment industry. Choose HoT-D high-current surface mount jumper 0R resistors to safeguard your electronic devices!
