Mastering the Power Path: Advanced PCB Solutions for High-Reliability Electronics

Introduction: The Evolution of Power Density

The relentless demand for efficiency and power density in sectors like Electric Vehicles (EV), Industrial Automation, and 5G infrastructure has pushed the limits of traditional Printed Circuit Board (PCB) design. Modern power modules face unprecedented thermal stress and complex current routing challenges. At Milliohm Electronics, we specialize in providing three integrated hardware solutions that tackle these issues, ensuring long-term reliability and optimizing thermal management on the board.

1. Precision Current Sensing and Thermal Stability

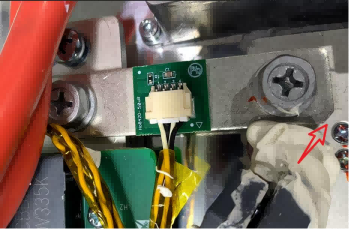

Accurate current measurement is non-negotiable for control and protection in any high-reliability application. Our zero-ohm resistors and specialized PCB shunts are engineered to function as the eyes of your control system, providing precise feedback while minimizing power loss.

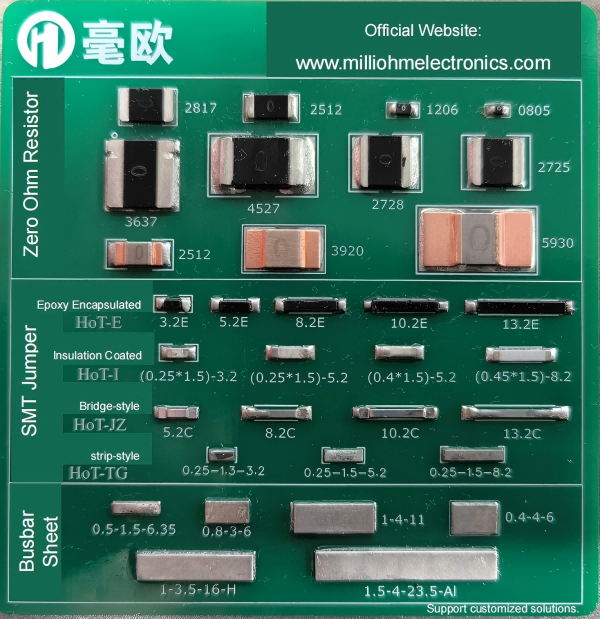

• Zero Ohm Resistors / PCB Shunts: Utilizing robust alloy materials, our wide-terminal resistors (available in various sizes including 5930 and 3920) offer superior reliability. When utilized as shunts, they ensure precise current sensing with the high tolerance and ultra-low Temperature Coefficient of Resistance (TCR) required for stable operation across wide temperature variations.

• The Advantage: By integrating directly onto the PCB, these components help optimize the thermal coupling, simplifying the design of the shunt loop and improving overall system accuracy.

2. Advanced High-Current Bridging with SMT Jumpers

In densely packed power boards, routing high-amperage lines can quickly lead to increased copper area, complex multilayer stacking, and poor thermal performance. Our SMT Jumper series offers an efficient alternative for bridging power lines and bypassing signal paths.

• Product Range: Our specialized series—including the HoT-E (Epoxy Encapsulated) and HoT-I (Insulation Coated) styles—provide a reliable, surface-mount solution for high-current flow.

• Design Benefits: These jumpers are designed for automatic SMT placement and offer significantly better current carrying capability and thermal dissipation than standard PCB traces. They free up critical board space, simplify routing between power stages, and reduce localized hot spots.

3. Integrated Power Distribution with Custom Busbar Sheets

When current demands exceed the capacity of even the thickest copper PCB layers, a dedicated distribution system is required. Our Busbar Sheets provide a professional solution for extreme loads.

• Low Impedance Distribution: Designed from high-conductivity copper or aluminum alloy, these custom Busbars ensure low impedance power paths, essential for minimizing voltage drop and maximizing efficiency in battery modules and high-power inverters.

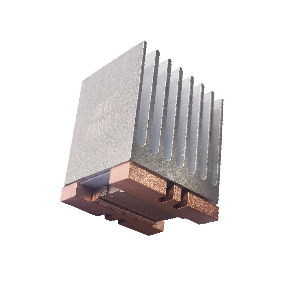

• Thermal Management Integration: The large surface area of the Busbars acts as a primary heat dissipation path, critically managing the heat generated from high-amperage flow. We tailor the size and shape to integrate seamlessly with your power module structure, enabling current flow up to 5000A or more in complex assemblies.

Conclusion: Customization for Reliability

At Milliohm Electronics, our commitment is to provide the reliable hardware foundation your critical electronics require. By combining precision current sensing alloys with specialized SMT bridging and high-capacity Busbar solutions, we empower engineers to manage the most challenging thermal and electrical requirements.

Are you struggling to meet the thermal and accuracy demands of your next EV or high-density industrial design? Contact our engineering team today to explore how our customized alloy and copper solutions can optimize your PCB power path.
