HoJLRH Series Resistor ceramic thin film high power resistor
HoJLRH1206
HoJLRH1206 Ceramic Thin Film High Power Resistor (1W, 101mR-910mR) | Milliohm Electronics
The HoJLRH1206 series from Shenzhen Milliohm Electronics Co., Ltd. is a high-power, high-precision surface mount chip resistor engineered for advanced current detection and power management applications. Built on a high-purity alumina ceramic substrate with an enlarged electrode structure, the HoJLRH1206 achieves power dissipation ratings of up to 1 W in a standard 1206 footprint while maintaining exceptional thermal stability and tight resistance tolerance.
The HoJLRH1206 series from Shenzhen Milliohm Electronics Co., Ltd. is a high-power, high-precision surface mount chip resistor engineered for advanced current detection and power management applications. Built on a high-purity alumina ceramic substrate with an enlarged electrode structure, the HoJLRH1206 achieves power dissipation ratings of up to 1 W in a standard 1206 footprint while maintaining exceptional thermal stability and tight resistance tolerance.
Quantity:
HoJLRH1206 Ceramic Thin Film High Power Resistor (1W, 101mR-910mR) | Milliohm Electronics
For more product details, please refer to the datasheet or contact us.
Features
①Large Electrode(Allseries)
②Pb-free to Meet RoHS Requirements
③Good Performance for Heat Dissipation
④High Purity Alumina Substrate for High Power Dissipation
⑤Low Resistance and High Accuracy Resistor for Current Detection
Application Areas
①Switching Power Supply
②Power Management Applications
③Voltage Regulation Module(VRM)
④DC-DC Converter, Battery Pack, Charger, Adaptor
⑤Portable Instruments (PDAandCellPhone)/Computer

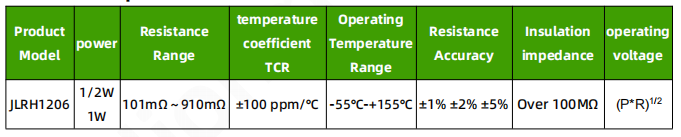

Electrical parameters

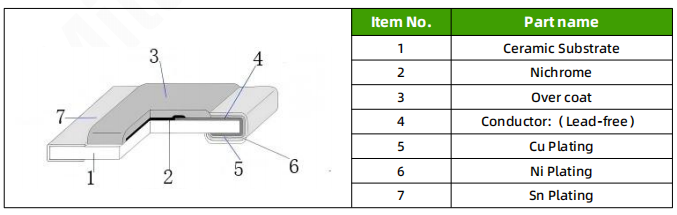

Product Structure

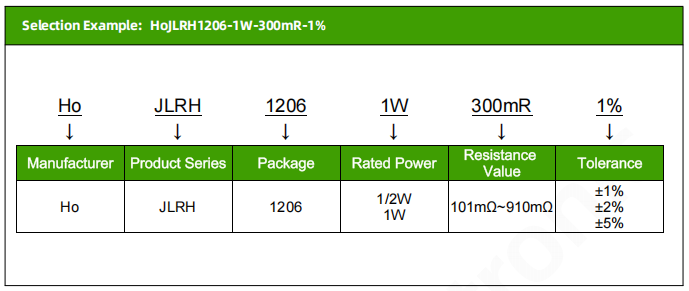

Product Selection

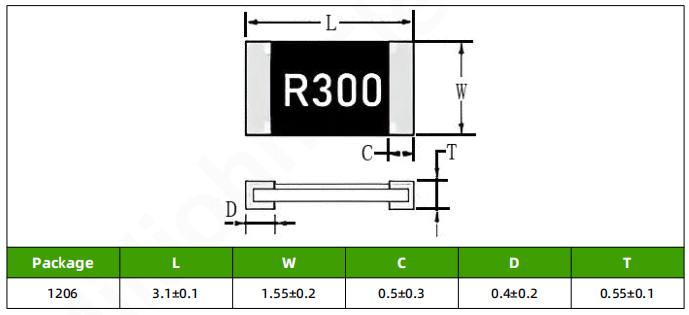

Product Size(unit：mm)

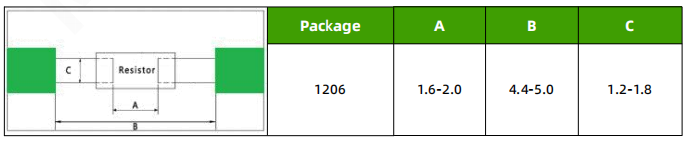

Recommended Pad Size

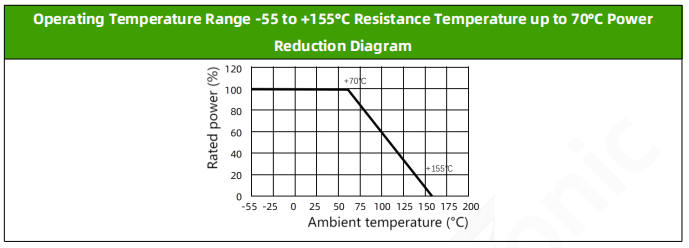

Power Derating Curve

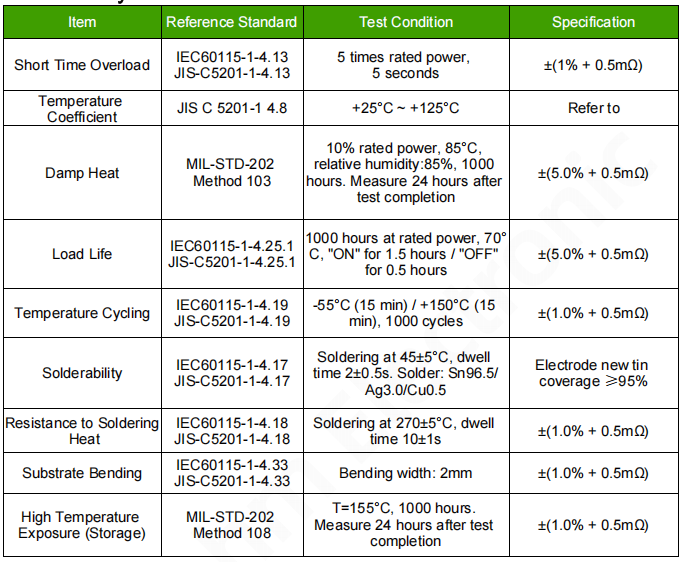

Reliability Test
