HoJLR0603 Series Metal Foil Current Sensing Resistors
The HoJLR0603 Series from Shenzhen Milliohm Electronic Co., Ltd. delivers high power density, low TCR, and precise current measurement in a compact 0603 surface-mount package. Built with a solid metal foil element and multi-layer termination, this series offers up to 0.5W power rating across ultra-low resistance values from 2 mΩ to 20 mΩ.
The HoJLR0603 Series from Shenzhen Milliohm Electronic Co., Ltd. delivers high power density, low TCR, and precise current measurement in a compact 0603 surface-mount package. Built with a solid metal foil element and multi-layer termination, this series offers up to 0.5W power rating across ultra-low resistance values from 2 mΩ to 20 mΩ.
Quantity:
High-precision HoJLR0603 metal foil current sense resistors by Shenzhen Milliohm Electronic Co., Ltd. Features 0.5W power rating, 2mΩ to 20mΩ range, low TCR down to ±75 ppm/°C
For more product details, please refer to the datasheet or contact us.
Key Features
- High Power Density: Rated up to 0.5W (1/2W) in a standard 0603 (1608 metric) footprint.
- Ultra-Low Temperature Drift: Low TCR options from ±75 ppm/°C to ±150 ppm/°C ensure accurate current monitoring across thermal cycles.
- Low Thermal EMF & Low Inductance: Prevents signal noise and false voltage readings in high-frequency switching and low-voltage sensing applications.
- Robust Construction: Constructed with a solid metal alloy core, epoxy encapsulation, and multi-layer Sn/Ni/Cu plated terminals for solderability and high reliability.
- Certified Quality: compliant with RoHS and REACH standards.
Applications
①Notebook
②Batterypack
③Inverter/Converter
④Consumerelectronics

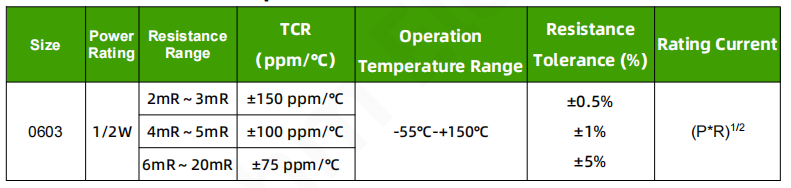

Standard Electrical Specifications

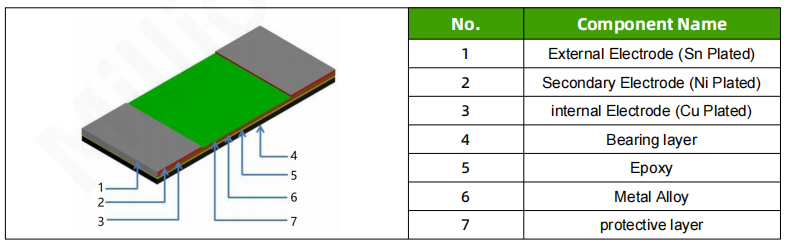

Construction

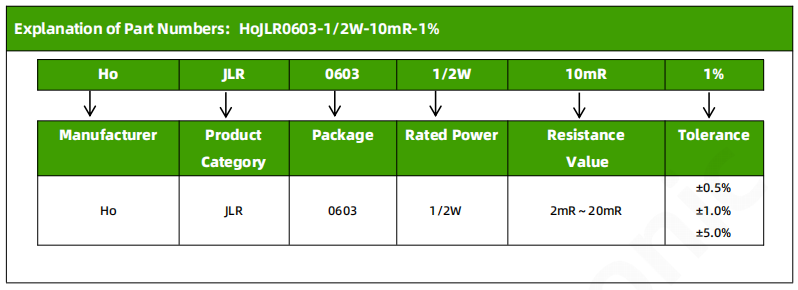

Part number

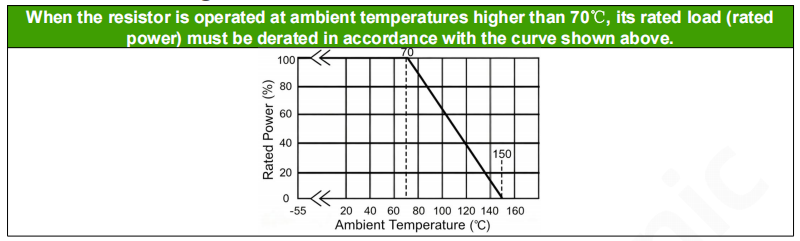

Power Derating Curve

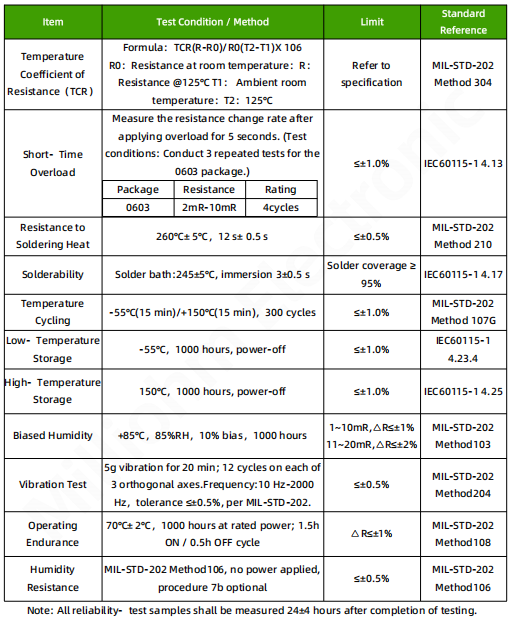

Reliability Test

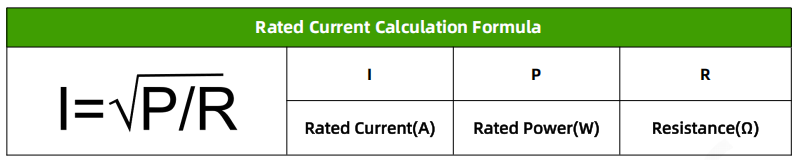

RatedCurrentCalculationFormula

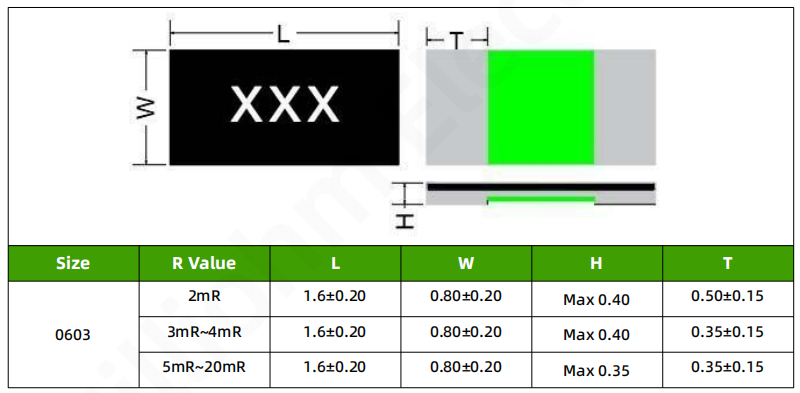

Outline Dimensions(mm)

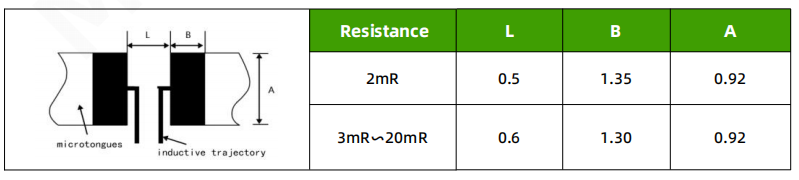

Recommended Pad Dimensions

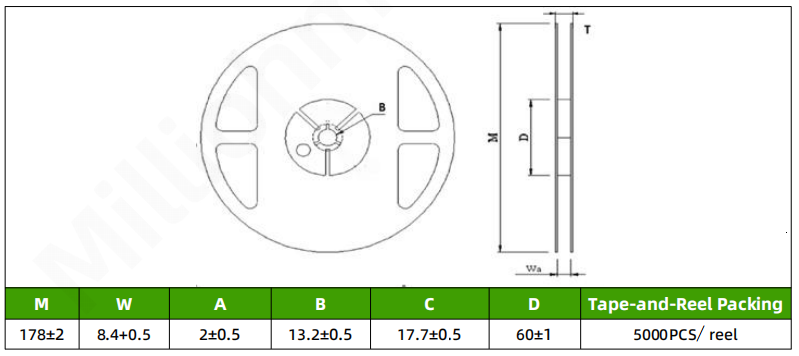

Reel Specifications

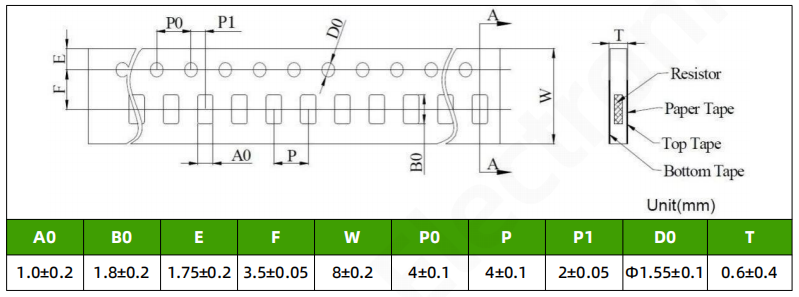

Carrier Tape Dimensions
